Description

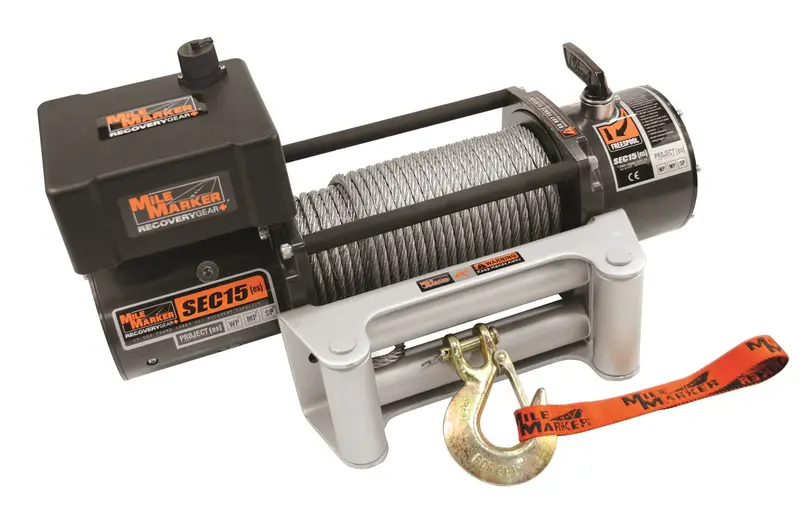

The Mile Marker SEC15 premium Jeep/Truck/SUV winch is heavy on power, but light in weight, the SEC15 sets the industry standard for performance.
Featuring a compact design, the SEC15 weighs 85 pounds with an impressive pull strength of 15,000 pounds. Boasting 25 percent less weight than other winches in its class, the SEC15 mounts easily and is an excellent choice for full size trucks looking for big winch power without adding big winch weight to the vehicle foots front end.
Fully sealed, submersible, water, mud, and snow proof, the all metal, 3 stage planetary gear train provides the durability and reliability you can depend on in the most extreme situations and elements.
The SEC15 is built with marine grade remote control connectors and a 6.8 HP series wound motor. Each winch comes with a 79 foot steel cable, a roller fairlead, stainless steel hardware, a hook, a corrosive resistant body, and a handheld remote control with a 12 foot cord. Also included is a durable 3 inch x 15 foot recovery strap.
Big Winch Power, Small Winch Weight, Our 15,000 pound winch packs heavy duty power. The light, compact design mounts easily to a full size truck or Jeep.
Each SEC15 includes a 15 foot recovery strap for longer pulls.
Features:
- 6.8 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless Steel
- Fasteners
- 79 foot Steel Cable
- Roller Fairlead
- Waterproof
- Handheld Remote Control
- Includes 15 foot Recovery Strap
Specfications 15k:
- Rated line pull 15,000 lbs (6810 kgs), Single line
- Gear Train 3 Stage Planetary
- Gear Ratio 294 : 1
- Motor Series Wound, 6.8 hp, 12V, (24V not available)
- Remote Control Power-In, Power-Out Remote, 12 foot (3.7 m)
- Dimensions (LxWxH) 22.44 inch X 6.29 inch X 11.00 inch (570 mm X 160 mm X 280 mm)
- Steel Cable 3/8 x 79 foot (9.5 mm X 22m)
- Drum Size 2.9 inch X 8.9 inch (75 mm X 228 mm )
- Net weight 85 lbs
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch (114.3 mm X 254 mm)
Resources
Installation Instructions
Specifications:
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 79 Foot |
| Description_DES | SEC15 ES Waterproof Winch |
| Description_EXT | SEC15 ES Waterproof Winch; 15000 lbs. Rated Line Pull; 12V Motor; |
| Description_FAB | Automatic Load-Holding Brake |
| Description_FAB | Free Spooling |
| Description_FAB | Low Electric Current |
| Description_FAB | Planetary Gear System For Fast Line Speed |
| Description_FAB | Power In And Out |
| Description_FAB | Waterproof – Fully Submersible |
| Description_INV | ELECTRIC WINCHES |
| Description_MKT | Mount to front of vehicle. Can be permanent or detachable. Free spooling and mechanical lock. Sealed against elements, can be used under water. Corrosion resistant. Stainless steel tie bars and fasteners. Reversible mounting. Limited warranty. |
| Description_SHO | Winch |
| drum_diameter | 2.9×8.9 Inch |
| gear_ratio | 294:01:00 |
| gear_train | 3 Stage Planetary |
| height | 14.0 |
| last_update | 2022-03-06 03:54:38 |
| length | 24.0 |
| LTL | N |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| pull_capacity | 15000 LB |
| Rated Single Line Pull (lbs.) | 15000 |
| Series | Sec15 Series |
| sold_as | Each |
| Style | Electric Winch |
| Type | ATV |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| Voltage | 12 DC |
| volts | 12 Volt |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Warranty |
| waterproof_rating | IP68 Rated |
| weight | 101.0 |
| width | 8.66 |
| winch_motor | 6.8 HP Series Wound Motor |
