Description

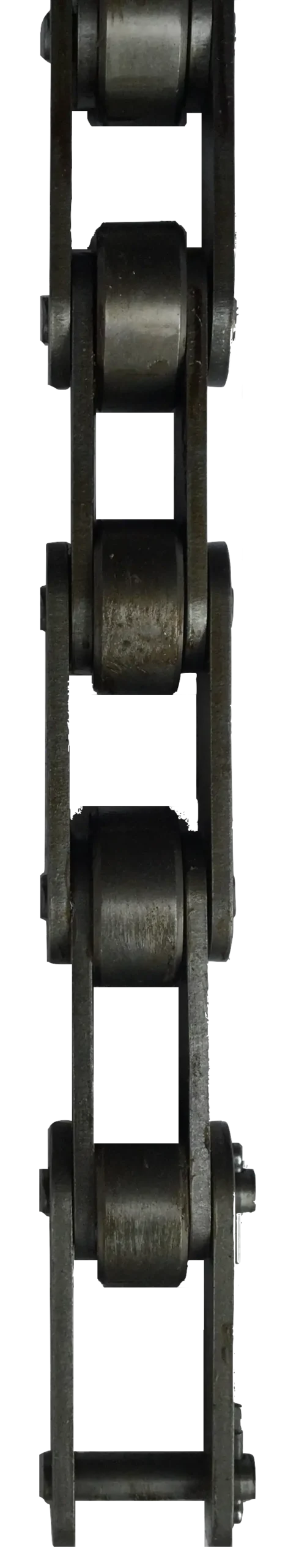

Heavy series roller chain is manufactured with thicker link plates compared to standard roller chain to help against fatigue with greater shock loads.
Double pitch roller chains are manufactured similarly to standard roller chain but with twice the pitch distance. Drive chains (A series chains) are designed with a figure-8 shaped side plate, and conveyor chains (C series) feature straight side plates. This lighter-weight chain is ideal for lower loads, moderate speeds, and larger sprockets.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
| Roller Width | 0.750” | Plate Thickness 1 | 0.187” | Average Tensile Strength Lbs | 26,200 LB |
| Maximum Allowable Load | 3,900 LB | Construction | Riveted or Cottered | Rivet End To Centerline | 0.831” |
| Application | Conveying | Pin Diameter | 0.375” | Width | 1.800” |
| Pitch | 2.500” | Height | 1.126” | Plate Thickness 2 | 0.187” |
| Connecting End To Centerline | 0.969” | Diameter | 0.750” |
