Description

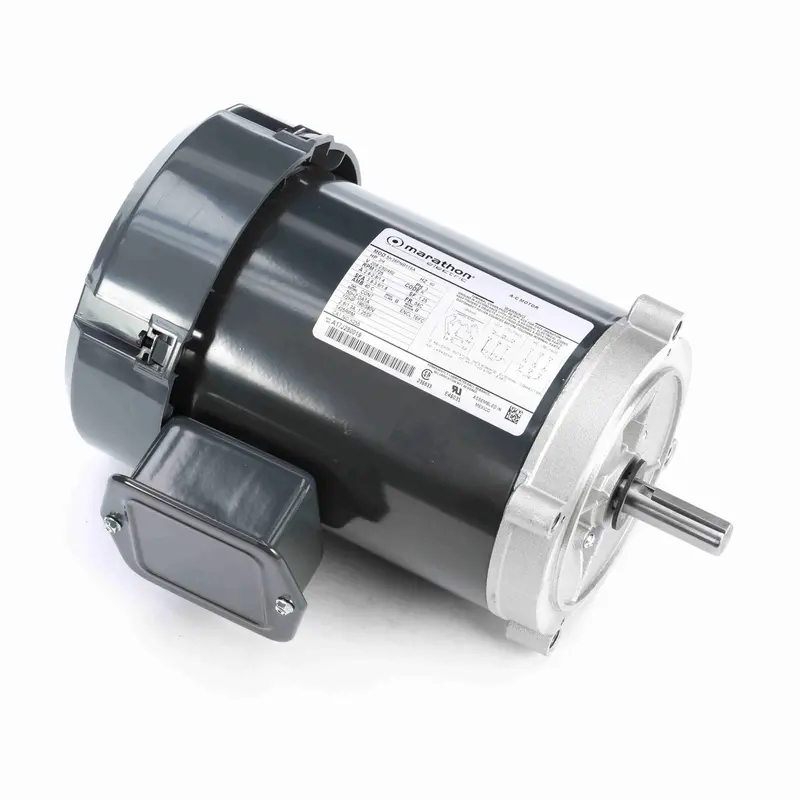

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, 3-phase TEFC motor is designed for a vast amount of industrial applications.
| Material | Steel |
| Mounting | C-Face Rigid Base |
| Max Rpm | 1800 RPM |
| Hp Rating | 0.75 HP |
| Voltage | 208 V, 230 V, 460 V |
| Motor Application | General Application |
| Motor Enclosure Design | TEFC |
| Nameplate Rpm | 1725 RPM |
| Motor Shaft Rotation | Reversible |
| Full Load Amps | 1.5 Amps |
| Phase | 3 |
| Max Ambient Temperature | 40 °C |
| Shaft Diameter | 5/8 |
| Duty | Continuous |
| Nema Frame | 56C |
| Series | 3420M |
| Frequency | 60 Hz |
