Bk50h 1-Groove 4L/5L/A/B Series Split Taper Sheave 1
Bk50h 1-Groove 4L/5L/A/B Series Split Taper Sheave 2

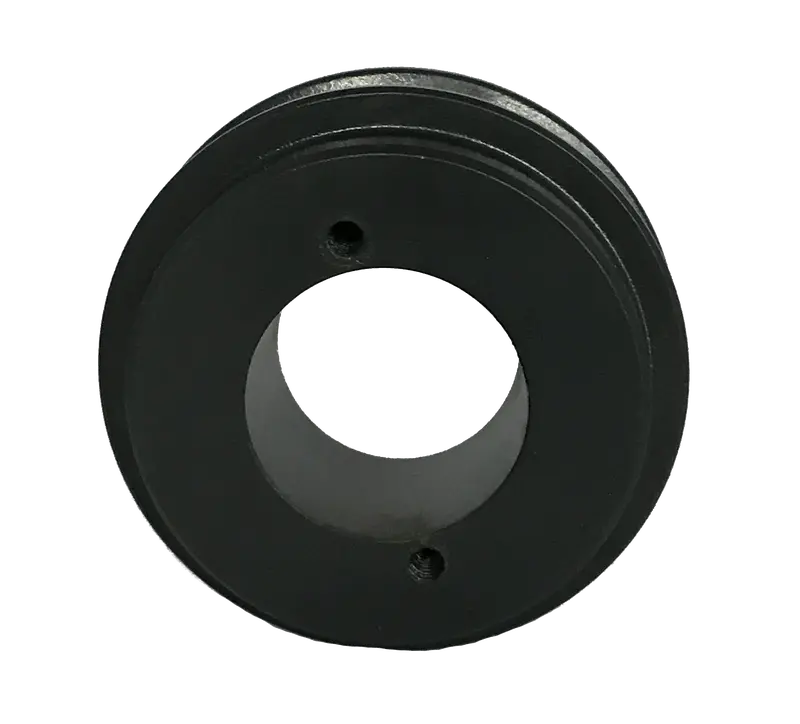

BK50H Split Taper V-Belt Sheave – Single-Groove for 4L, 5L, A, and B Belts

Original price was: $16.80.Current price is: $11.20.

In stock

Quantity
SKU: BK50H Category: Brand:

Description

V-Belt Pulley – 4L, 5L, A, B Belt Section, 1 Groove, Bushing Required Bore Size, 4.7500 in O.D., Split Taper Bushed, H Series Bushing, Cast Iron Material

Application 4L/A & 5L/B Classical Belt & FHP Drives
Material Cast Iron
Bore Type Split Taper
Number Of Grooves 1
Outside Diameter 4.750”
Length Through Bore 1.250”
Face Width 0.875”
Bushing Series H
Bushing Bore Range 1/2 – 1 1/2
Pitch Diameter 4 (A/4L) in, 4.4 (B/5L) in
Pulley Construction Plain
Keyway Size 1/4 x 1/16 (1-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-3/16 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 1/16 (1-3/8 to 1-1/2 Bore) in, 5/16 x 1/16 (1-5/16 to 1-3/8 Bore) in
