Description

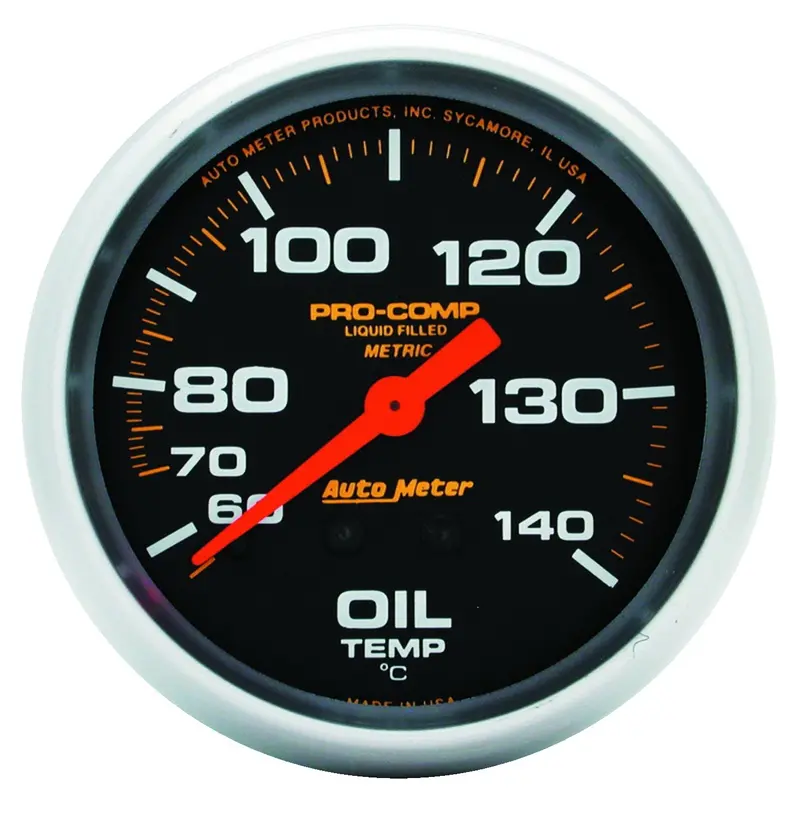

One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Utilizing AutoMeter’s ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6′ capillary tube and 1/2″ NPT mounting nut are included.
Resources
Installation Instructions
Specifications:
| Adapters Included | Yes |
| Analog Or Digital | Analog |
| Anti-Glare Enclosure Included | No |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Bulb and Socket Number | 3211 |
| Bulb Technology | Incandescent |
| Description_DES | GAUGE; OIL TEMP; 2 5/8in.; 140-280deg.F; LIQUID FILLED MECH; PRO-COMP |
| Description_EXT | 2-5/8in. OIL TEMPERATURE; 140-280 deg.F; LIQUID FILLED; PRO-COMP |
| Description_FAB | Incandescent Lighting Illuminates Around Perimeter Of Dial |
| Description_FAB | Incl. 1/2 in. NPT Adapter |
| Description_FAB | Incl. Bulb/Socket Assembly/Red And Green Bulb Covers |
| Description_FAB | Incl. Mounting Hardware/Instructions |
| Description_FAB | Liquid Dampening Movement Provides Smooth Pointer Movement |
| Description_FAB | Mechanical Instruments Provide Unmatched Accuracy |
| Description_FAB | No Electrical System Required For Gauge Operation |
| Description_INV | 2-5/8in. OIL TEMP; 140-280`F; 6ft. TUBIN |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Utilizing AutoMeter’s ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6′ capillary tube and 1/2″ NPT mounting nut are included. |
| Description_SHO | 2-5/8in. OIL TEMP; 1 |
| Electric Or Mechanical | Mechanical |
| Face Color | Black |
| Fitting Type | 0.500 in. NPT |
| Font Color | White |
| Gauge Size | 2.625 in. |
| Gauge Size | 66.7mm |
| Gauge Type | Oil Temperature |
| height | 6.25 |
| Hole Size | 2.625 in. |
| Hole Size | 66.7mm |
| length | 6.25 |
| Lens | Flat Clear |
| Light Covers Number | 3244/3215 |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| LTL | N |
| Measurement | US |
| Mounting Bracket Number | 3245 |
| Movement Type | Mechanical |
| Number Color | White |
| Outer Bezel Diameter | 2.875 in. |
| Pointer Color | Fluorescent Red |
| Size | 2.625 in. |
| Sweep | Full |
| Temperature | 140-280° F |
| Type | Mechanical |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 1.54 |
| width | 6.0 |
