Description

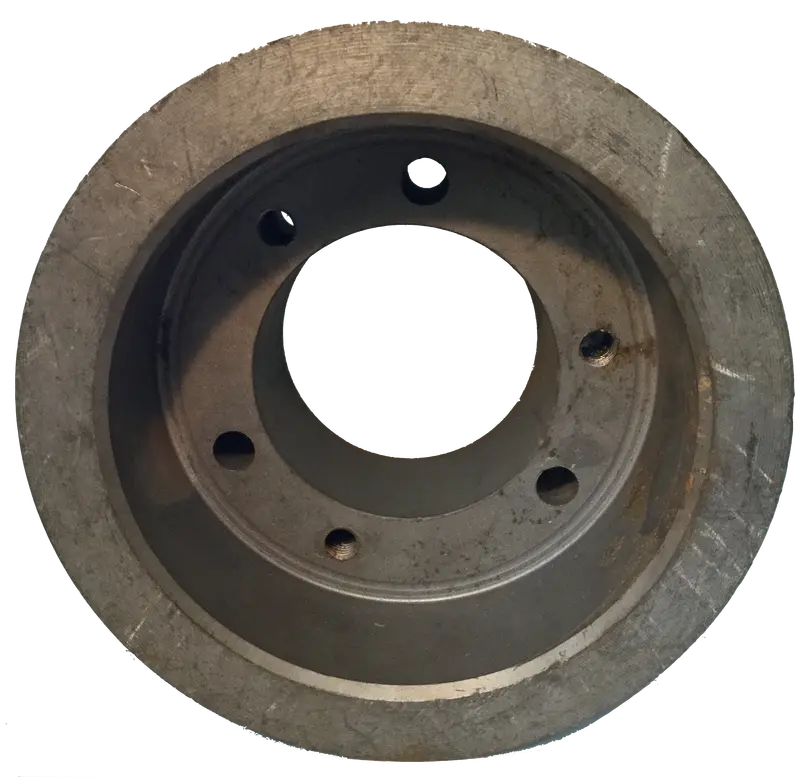

This 6-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Split Taper | Length Through Bore | 2.500” | Face Width | 4.750” |
| Bushing Bore Range | 3/4 – 2 11/16” | Pulley Construction | Webbed | Application | Classical A/B 6-Belt Belt Drive |
| Width | 5.031” | Material | Cast Iron | Number Of Grooves | 6 |
| Outside Diameter | 7.150” | Bushing Series | Q1 | Pitch Diameter | 6.4 (A) in, 6.8 (B) in |
| Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in |
