Description

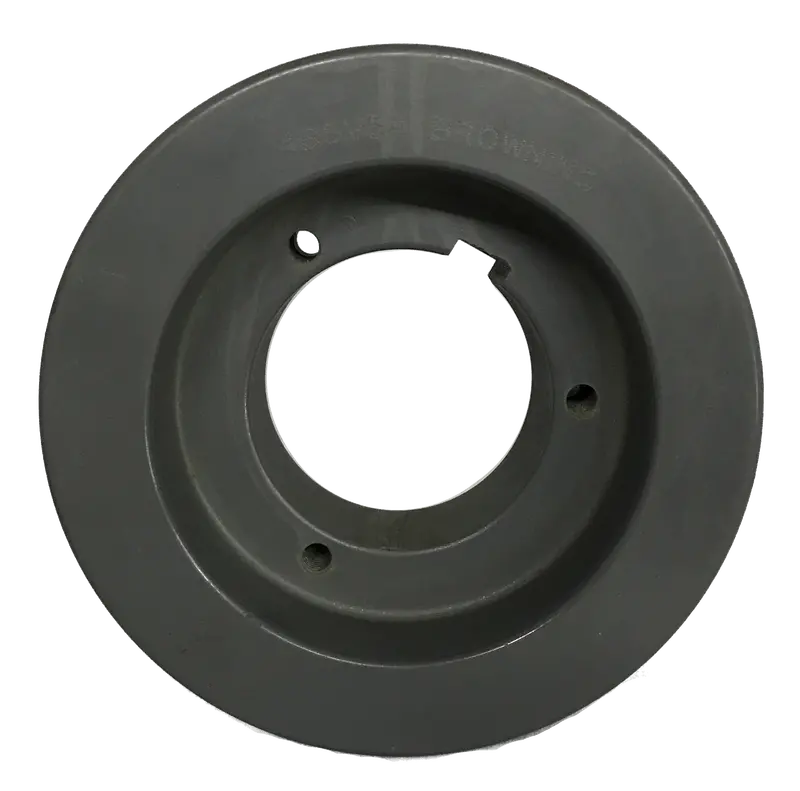

This 4-groove cast iron sheave fits C Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Split Taper | Length Through Bore | 3.500” | Face Width | 4.250” |
| Bushing Bore Range | 1 – 2 5/8” | Pulley Construction | Webbed | Application | Classical C 4-Belt Drive |
| Width | 4.531” | Material | Cast Iron | Number Of Grooves | 4 |
| Outside Diameter | 10.000” | Bushing Series | Q2 | Pitch Diameter | 9.6 in |
| Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (1 to 1-1/4 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-5/8 Bore) in |
