Description

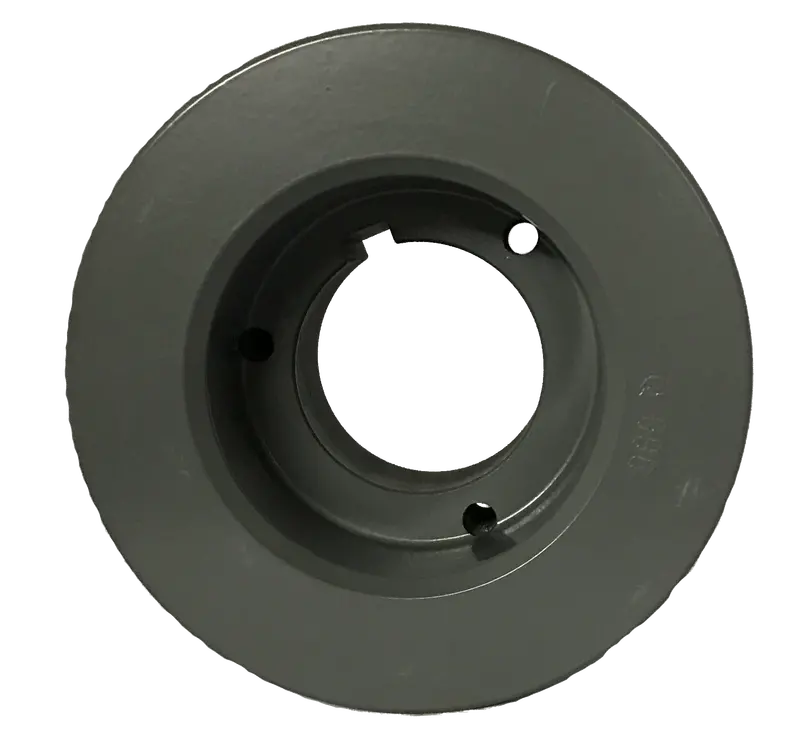

V-Belt Pulley – A, B Belt Section, 3 Groove, Bushing Required Bore Size, 4.5500 in O.D., Split Taper Bushed, P1 Series Bushing, Cast Iron Material
| Application | Classical A/B Triple Belt Drive |
| Material | Cast Iron |
| Bore Type | Split Taper |
| Number Of Grooves | 3 |
| Outside Diameter | 4.550” |
| Length Through Bore | 1.938” |
| Face Width | 2.500” |
| Bushing Series | P1 |
| Bushing Bore Range | 1/2 – 1 3/4 |
| Pitch Diameter | 3.8 (A) in, 4.2 (B) in |
| Pulley Construction | Plain |
| Keyway Size | 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in |
