Description

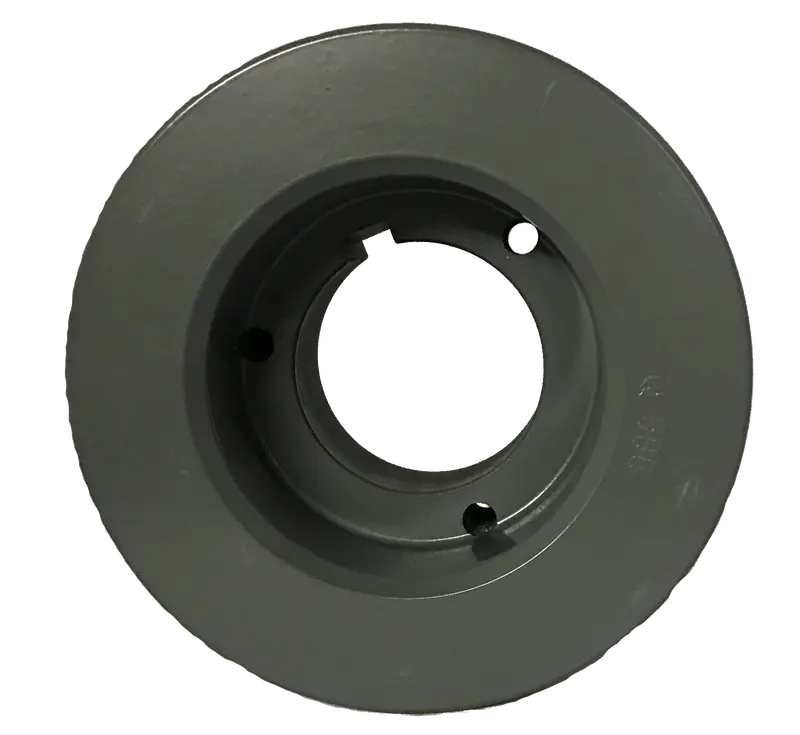

This 3-groove cast iron sheave fits 3V Series belts and features a taper-lock bushing. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Taper Locking | Length Through Bore | 1.750” | Face Width | 1.900” |
| Bushing Bore Range | 1/2 – 2 11/16” | Pulley Construction | Plain | Application | 3V Wedge Triple Belt Drive |
| Width | 1.900” | Material | Cast Iron | Number Of Grooves | 3 |
| Outside Diameter | 8.000” | Bushing Series | 2517 | Pitch Diameter | 7.95 in |
| Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in |
