Description

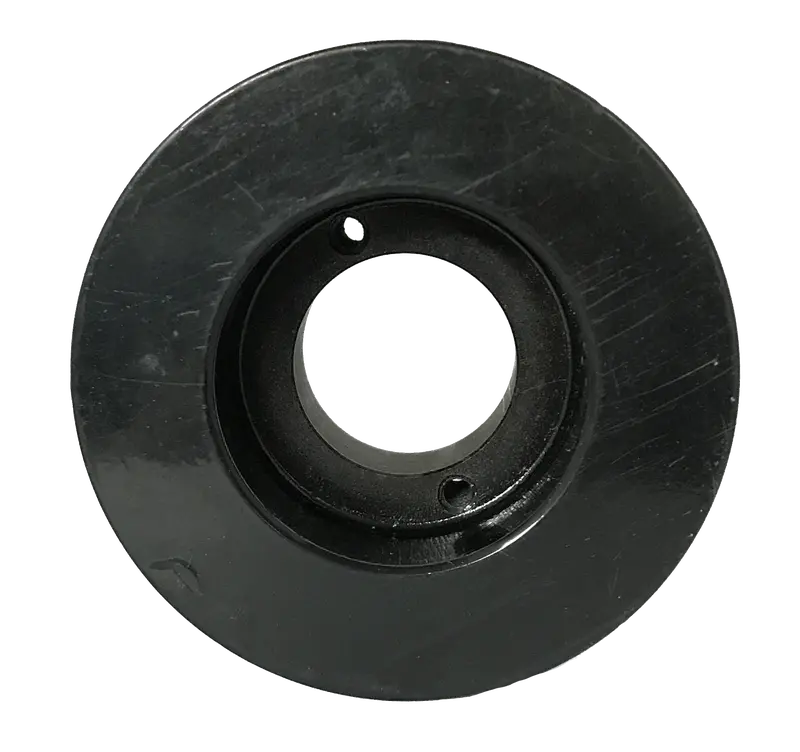

This 2-groove cast iron sheave fits 3L, 4L, and A Series belts and features a split taper bushing. This is a light-duty sheave best used with fractional horse power drives. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Split Taper | Length Through Bore | 1.250” | Face Width | 1.375” |
| Bushing Bore Range | 1/2 – 1 1/2” | Pulley Construction | Plain | Application | Double Belt Fractional Horse Power Drive |
| Width | 1.500” | Material | Cast Iron | Number Of Grooves | 2 |
| Outside Diameter | 4.950” | Bushing Series | H | Pitch Diameter | 4.7 (A/4L) in, 4.36 (3L) in |
| Keyway Size | 1/4 x 1/16 (1-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-3/16 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 1/16 (1-3/8 to 1-1/2 Bore) in, 5/16 x 1/16 (1-5/16 to 1-3/8 Bore) in |
